Car Door Mold

Car Door Mold

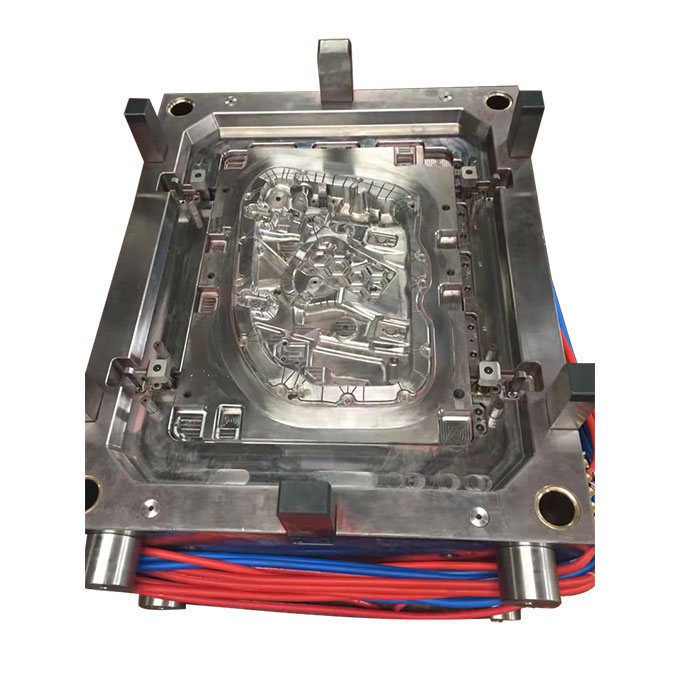

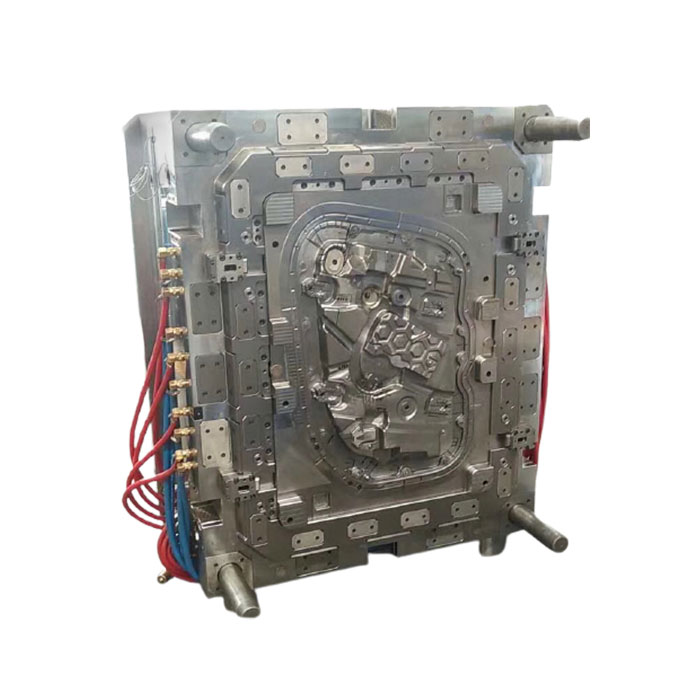

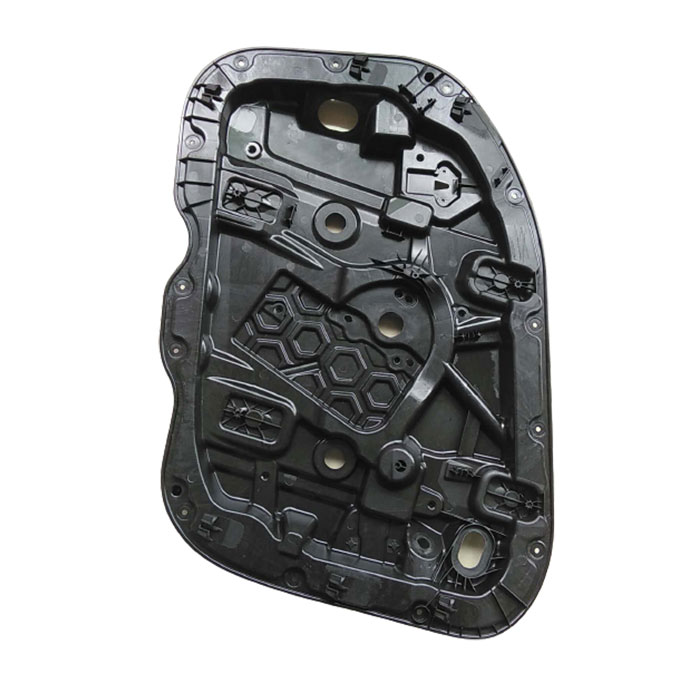

Automotive Door Bracket Mold can shorten the fixture wasting(the fixture will improve the slight deformation) and it has very good product consistency. The product material is nylon with glass fiber, the product deformation cannot meet the requirements due to the inconsistency of the arrangement of the material and the glass fiber. Generally, the glass fiber material is likely to cause deformation.


BUY INJECTION MOLD
Don't Hesitate to Contact Us Now.
