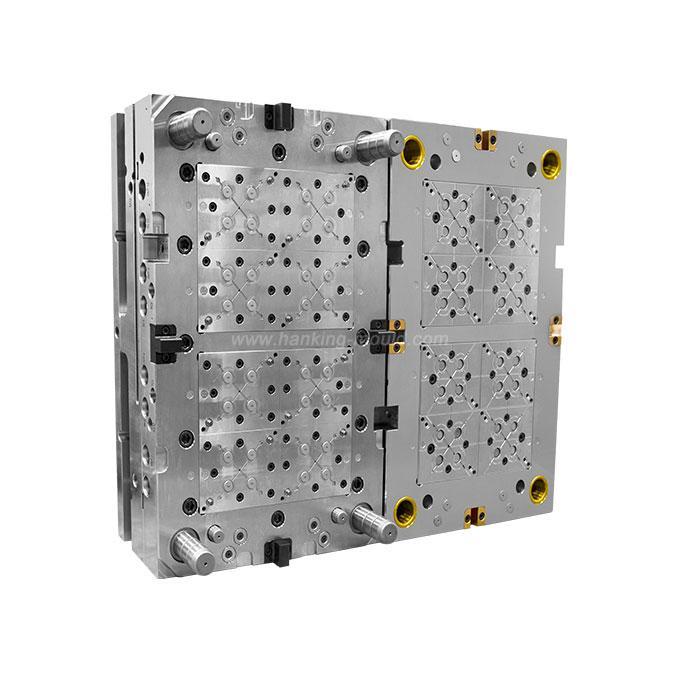

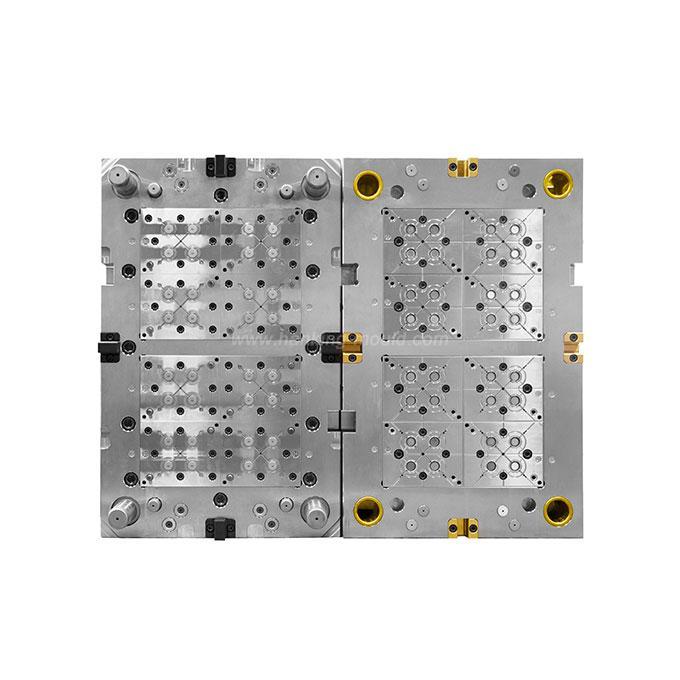

32 Cavity Mold

In terms of multi-cavity molds, we pay attention to the design of layout and runner filling balance, which is also the key to the success of multi-cavity molds.

Product material: ABS material in medical-grade

Mold steel: S136 HRC 52-54

Mold life: 1 million

Hot runner brand: mold master

Mold base: LKM

Surface finishing: texture

Mold lead time: 6 weeks


BUY INJECTION MOLD
Don't Hesitate to Contact Us Now.
