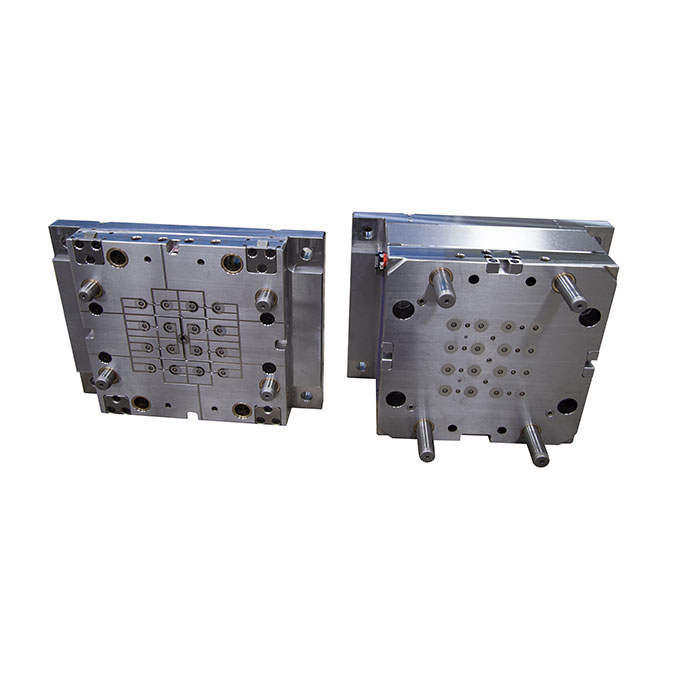

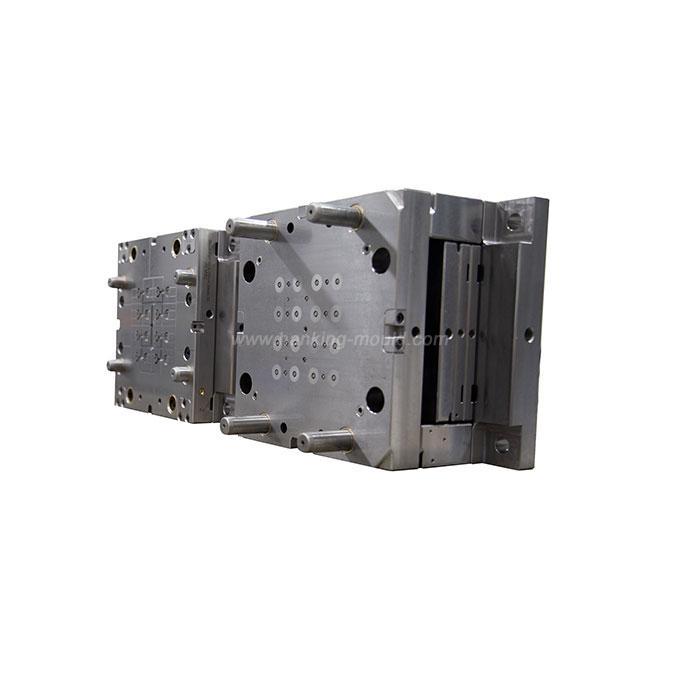

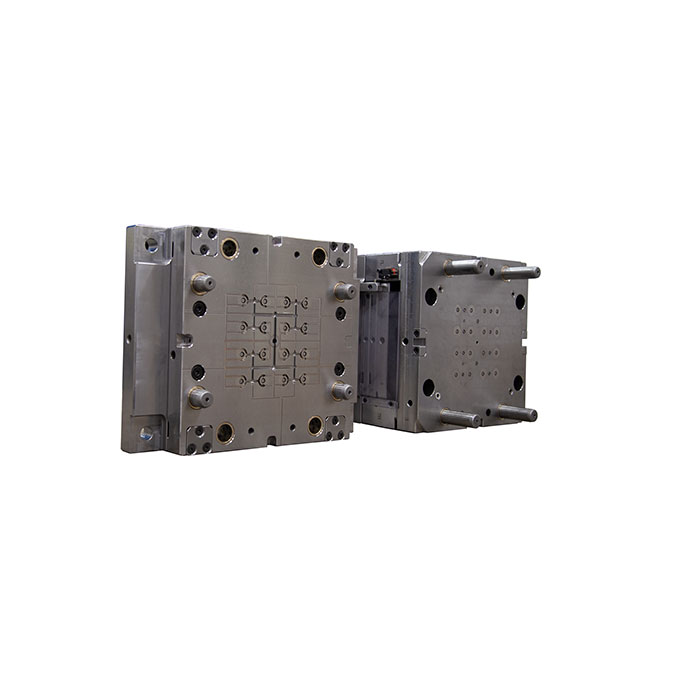

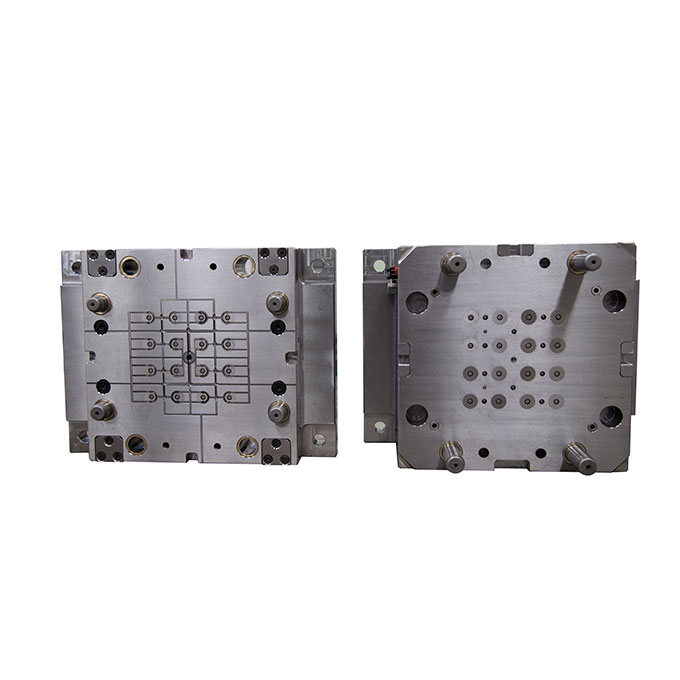

16 Cavities Plastic Injection Mold

This mold will use 4 pin-points hot nozzles for gating, and one nozzle will control 4 pieces of parts gating in order to achieve filling balance.

Product material: PP material in medical-grade

Mold steel: S136 HRC 52-54

Mold life: 1 million

Hot runner brand: mold master

Mold base: LKM

Surface finishing: texture

Mold lead time: 5 weeks
